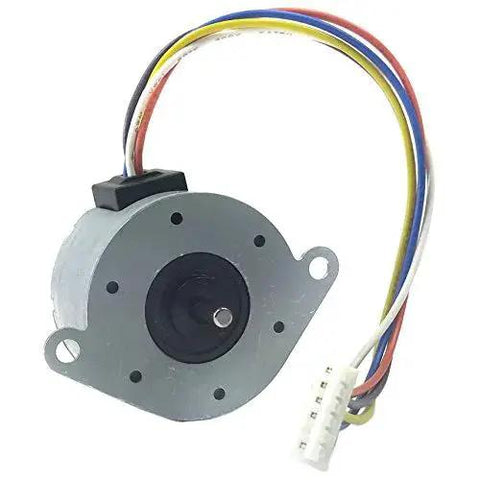

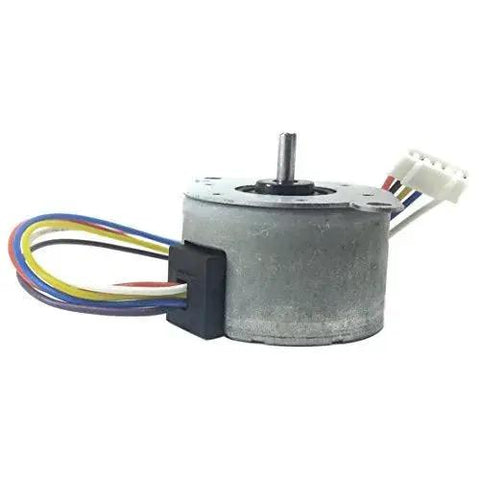

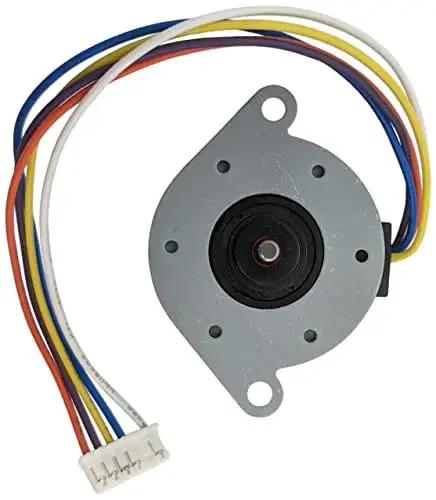

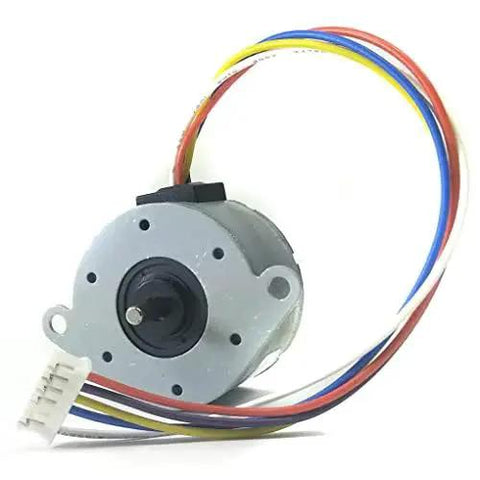

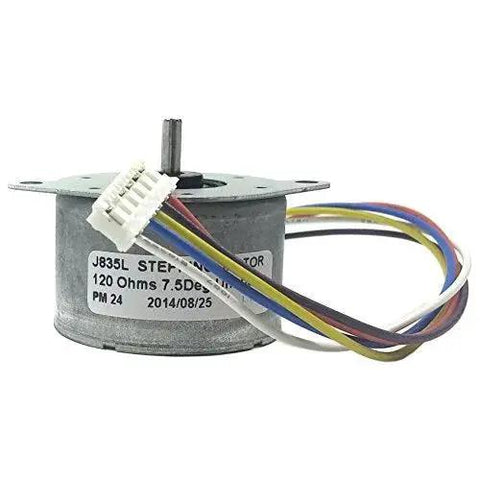

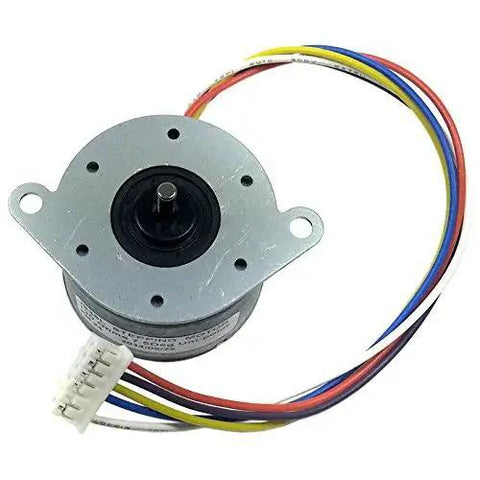

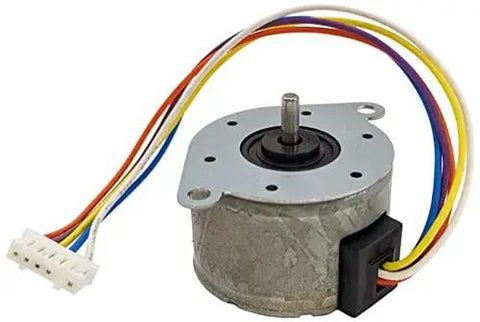

Unipolar Stepper Motor 5V DC Dual Coil Center-Tapped 7.5 Per Step 120 Ohm

Compact 5V unipolar stepper motor, single unit with coils
✔️ 5V DC dual center-tapped coils, 7.5°/step, dia 1.36 in (34.5 mm)

This compact 5V unipolar stepper motor delivers precise rotary motion in tight spaces, making it a great fit for robotics, small CNC projects, and hobby printers.

✅ 5 wire leads with connector
✅ 5V DC unipolar stepper motor with dual center-tapped coils (120 ohm per coil)
✅ 7.5 degrees per step
✅ Diameter 1.36 in (34.5 mm); height 0.88 in (22.4 mm) without mounting tabs
✅ Shaft 0.4 in long (10.2 mm) and 0.11 in diameter (2.79 mm)
✅ Mounting hole spacing 1.64 in (41.7 mm) between centers
✅ Weight about 2.75 oz (78 g)

💡 What is a small 5V unipolar stepper motor used for in hobby projects? This handy motor is a common choice for precise positioning in compact builds. - hobby robotics and DIY printers - small CNC motion and camera sliders - stepper motor control with simple drivers
