Upgrade your heavy duty trailer with a 12 Inch Right Handed Electric Trailer Brake Assembly featuring 7000 lb capacity, a single unit design, 12 inch rotor, 3 1/4 inch bolt pattern, and reliable braking performance for easy replacement and upgrade
UPC: 00193019628188
✔️ 12 inch brake, 3-1/4 in bolt pattern, 7000 lb, single unit

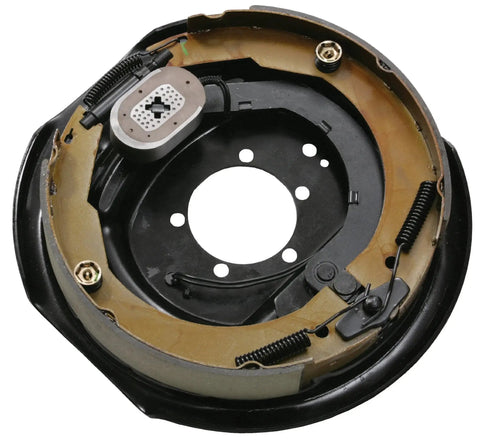

The 12 inch right-hand electric trailer brake assembly is a single-unit braking solution designed for heavy-duty trailers up to 7000 pounds. It's a common upgrade or replacement for utility, flatbed, and cargo trailers, especially on right-side setups. This unit replaces Axle Tek, Alko, Dexter, Fayette, and Hayes models.
✅ 12 inch diameter electric brake assembly for 7000 lb axles
✅ Right-hand brake compatible with standard 5-bolt flange patterns
✅ 3-1/4 inch mounting hole diameter with 3.88 inch bolt center flange pattern
✅ Replaces AxleTek, Alko, Dexter, Fayette, Hayes brake units
✅ Package weight 6.94 kg (15.3 lb) and package dimensions 14.25" L x 14.5" W x 3.0" H
| Dimension | Metric | Imperial |
|---|---|---|
| Height | 374.65 mm | 14.75 in |
| Length | 76.20 mm | 3.00 in |
| Width | 363.22 mm | 14.32 in |
| Weight | 6.94 kg | 15.3 lb |
💡 What is an electric trailer brake assembly used for on a heavy-duty axle system?
This handy device offers electronic braking control for safer towing. - Handy for replacing worn drum brakes on heavy trailers - Improves braking response and trailer stability - Works with 12V electrical systems and standard mounting patterns - Suitable for 7000 lb axles when paired with compatible drums
