USA 3/4 Rod End Heim Joint Kit with Right and Left Hand Threads, Dual .750 Chromoly Joints for Panhard and 4 Link Setups, Includes Tube Adapters, Jam Nuts and Misalignment Spacers for Steering, Suspension and Traction Bars

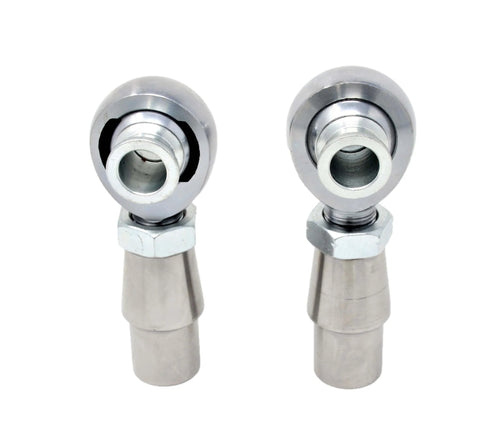

3/4 Inch Heim Joint Rod End Kit with Right and Left Hand Threads

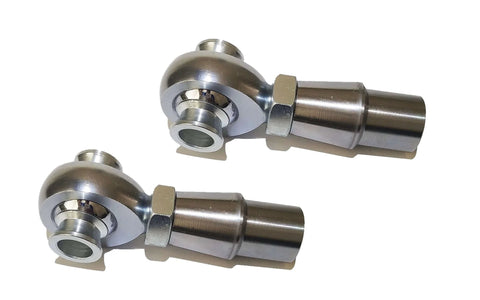

✔️ USA 0.750 Inch Chromoly Heim Joints for 4-Link, Panhard, and Steering

This 3/4 inch heim joint rod end kit is built for steering, suspension, and 4-link setups that need serious strength and long-term reliability. Supplied as a matched right and left hand pair with adapters and spacers, it’s commonly used on panhard bars, traction bars, tie rods, and custom link bars in performance and off-road builds.

✅ Pack size: 1 set with 1 RH and 1 LH heim joint plus hardware
✅ Heat-treated one-piece chromoly rod ends for heavy-duty use
✅ Static load rating up to 28,000 lbs for steering and suspension links
✅ 3/4"-16 threads with 0.750 inch bore for maximum joint strength

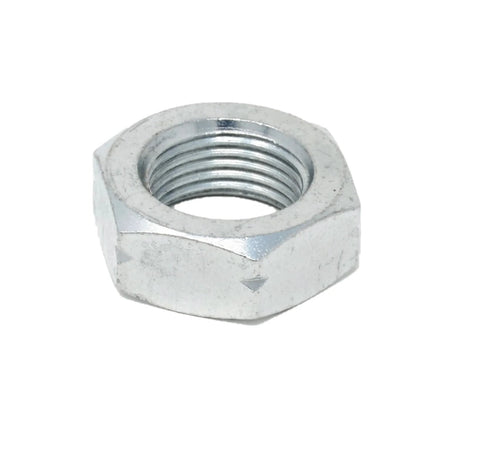

✅ Zinc-coated jam nuts and mild steel tube adapters for easy welding
✅ Fits 1.00 inch ID tubing, common 1.25 inch OD with 0.120 wall
✅ Includes misalignment spacers for use with standard 5/8 inch bolts
✅ Handy for 4-link kits, panhard bars, trailing arms, and custom tie rods

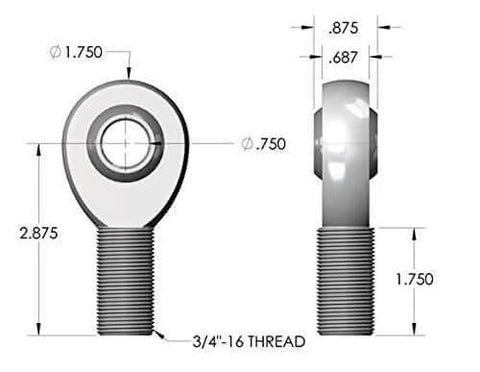

Dimensions and Specifications

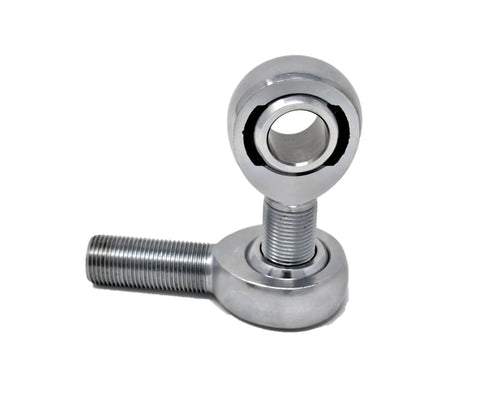

Rod End
Thread Size 3/4"-16
Shank Diameter 0.750 in
Ball Bore 0.750 in
Mounting Width 1.875 in
Static Load Capacity 28,000 lbs

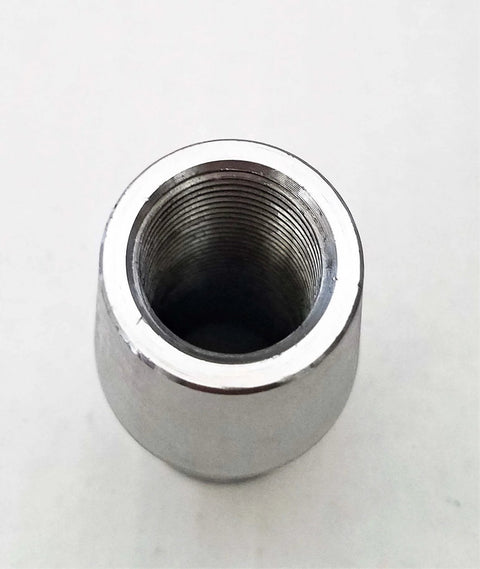

Tube Adapter
Tube ID 1.000 in
Tube OD 1.250 in
Wall Thickness 0.120 in
Material Mild steel

Misalignment Spacer
Bolt Size 5/8 in
Recommended Bolt Grade 8 or better

💡 Why are 3/4 inch chromoly heim joints commonly used in 4-link and panhard bar systems?
3/4 inch chromoly heim joints are used when strength, articulation, and adjustability are critical in suspension geometry.

• Large bore and shank handle shock loads from acceleration and braking

• Chromoly construction resists fatigue and deformation over time

• Misalignment spacers allow smooth movement without bind

• Right and left hand threads make on-vehicle adjustment fast and precise

This kit is a handy choice when you want tough, long-lasting heim joints that hold alignment and perform reliably in demanding steering and suspension setups.
