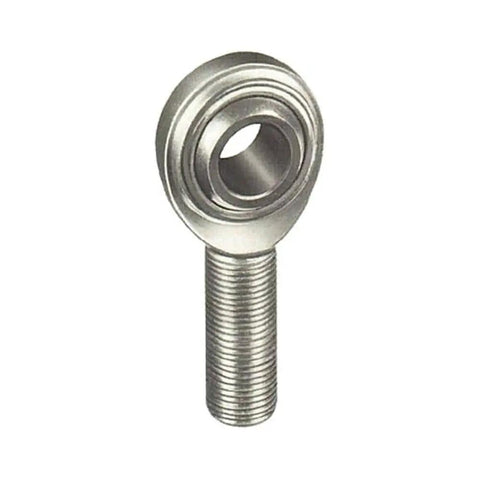

VCAM-10 Economy Right Hand Male Rod End 3/8-24 RH Thread With 0.375 Inch Bore Alloy Steel Body PTFE Bearing High Strength Heat Treated Corrosion Resistant

VCAM-10 Economy Right-Hand Rod End for single unit ✔️ Right-hand thread 5/16-24, ball dia 0.593 in, single unit

This economy VCAM-10 right-hand rod end is a rugged pivot joint used to connect linkages, actuators, and control arms in industrial machines and automation systems. It features a heat-treated alloy steel body with protective coating for corrosion resistance and a PTFE composite bushing for smooth, low-friction operation.

✅ Thread Type: Right Hand, Male, 5/16-24 UNJF-3A
✅ Ball Diameter: 0.593 in; Ball Width: 0.437 in; Head Width: 0.312 in
✅ Base to Center (A): 1.875 in; Head Diameter: 0.875 in
✅ Material: Alloy steel body with protective coating; PTFE composite bushing
✅ Load Rating: 5,032 lb ultimate radial static capacity
✅ Options: Stud configuration available on request (suffix "S")

💡 What is a rod end bearing used for in industrial machinery and automation?

Rod end bearings are handy pivot joints that connect moving parts in tight spaces where a fixed bearing won't work.

• Used to join actuators, linkages, and robotic arms with angular movement
• Provides a threaded connection with limited misalignment and a pivot option
• Durable alloy steel body with PTFE bearing for smooth operation and corrosion resistance
