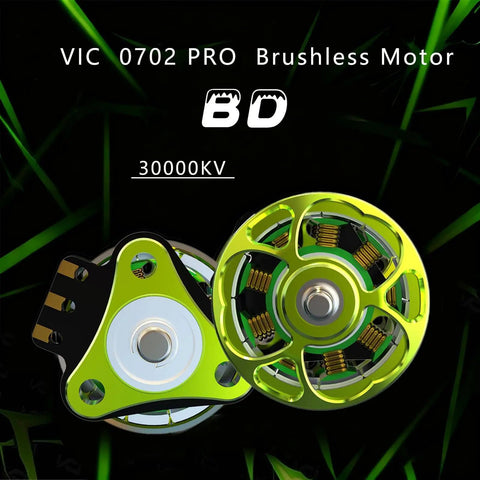

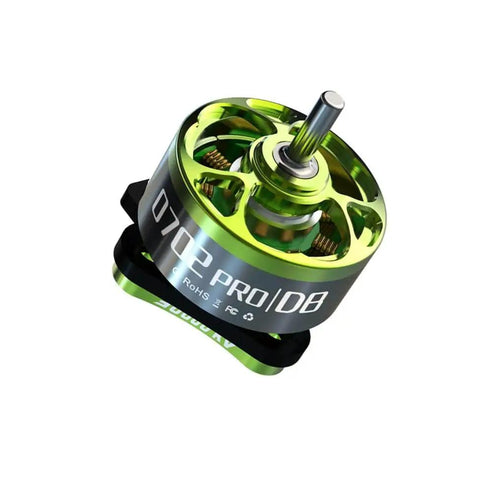

VCI 0702 30000KV Brushless Motors Pack For 65Mm FPV Whoop Drones Ultra Lightweight 1S Micro Motors For Fast Racing Quadcopters Smooth Dynamic Balance For Longer Flight Time

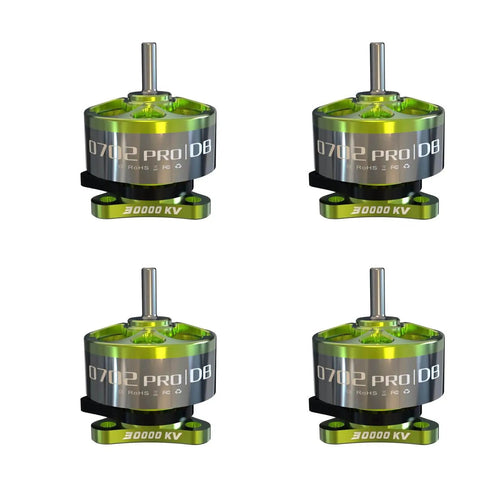

4x 30000KV 0702 Brushless Motors for 65mm FPV Whoop Drones

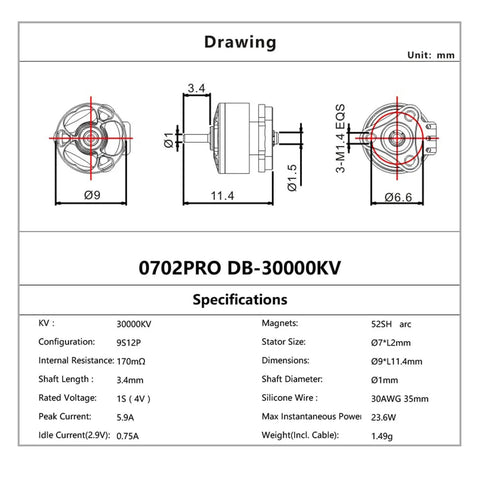

✔️ 4x motors at 1.49g each, stator φ7xL2mm, body φ9x11.4mm, 1mm shaft, 30000KV

These compact motors are designed for 65mm FPV micro whoop frames. They deliver high RPM and light weight for longer flight times and agile handling in tiny quads.

✅ KV: 30000KV
✅ Weight (incl. cable): 1.49g
✅ Stator Size: φ7xL2mm
✅ Dimension: φ9xL11.4mm
✅ Shaft Length: 3.4mm
✅ Shaft Diameter: φ1mm
✅ Internal Resistance: 170mΩ
✅ Input Volts: 1S (4V)
✅ Peak Current: 5.9A
✅ Max Watt: 23.6W
✅ Idle Current(2.9V): 0.75A
✅ Magnets: 52SH arc
✅ Configuration: 9S12P
✅ Lead: 35mm/30AWG

💡 What is a brushless motor used for in micro drones?

This handy guide explains how these compact motors power tiny quads for fast, responsive flight.

- High KV provides rapid RPM for quick throttle and climbs - Lightweight design helps extend flight time on 1S packs - Works with small props like 31mm Gemfan 1219 and 1.0mm shafts
