Vertical Rod Anchor Screw With Three Eighths Inch Threaded Rod Fitting For Metal Deck Nut Free XPress Securement In Galvanized Steel With Zinc Coating 25 Pack

Nut-Free X-Press Rod Anchor Screw for 3/8 in Steel (25 Pack)
✔️ Galvanized steel with zinc coating; 1 in length; 25/64 in anchor

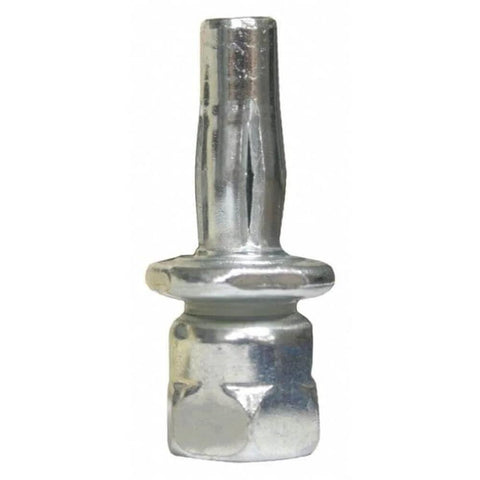

This nut-free X-Press anchor screw is designed to attach 3/8 in threaded rod to overhead metal decks. It delivers quick, secure installations for industrial racking, mezzanines, and ceiling supports.

✅ Overall length: 1 in (25.4 mm)
✅ Anchor diameter: 25/64 in (9.92 mm)
✅ Drill bit size: 25/64 in (9.92 mm)
✅ Thread size: 3/8-16 in (9.525 mm)
✅ Minimum material thickness: 1/8 in (3.175 mm)
✅ Maximum load capacity: 1146 lb (520 kg)

Dimension	Value
Overall Length	1 in (25.4 mm)
Anchor Diameter	25/64 in (9.92 mm)
Drill Bit Size	25/64 in (9.92 mm)
Thread Size	3/8-16 in (9.525 mm)
Minimum Material Thickness	1/8 in (3.175 mm)
Maximum Load	1146 lb (520 kg)

💡 What is a screw anchor for threaded rod used for in metal deck installations?

A handy fastener for securing threaded rod to overhead metal decks, common in construction and industrial hangers.

• handy for securing 3/8-16 rod in galvanized steel decks
• reduces need for retainer nuts using X-Press collapsing strips
• offers corrosion resistance with zinc coating
