Wen TR4024 Tie Rod Hydraulic Cylinder 2500 PSI Four Inch Bore Twenty Four Inch Stroke With Half Inch Rod

Wen TR4024 Tie Rod Cylinder: 4 in bore, 24 in stroke
✔️ 2500 PSI max, single unit, 4 in bore, 24 in stroke

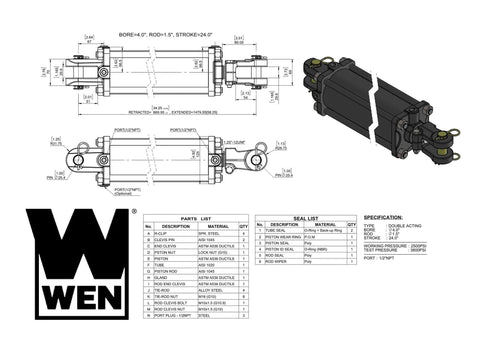

The Wen TR4024 is a heavy‑duty tie‑rod hydraulic cylinder designed for high‑pressure actuation in agricultural, construction, and industrial machinery. This single‑unit cylinder delivers robust linear motion with a 4 in bore and 24 in stroke, retracted to 34.25 in and extended to 58.25 in, and a 2500 PSI operating pressure for demanding cycles.

✅ 4 in bore and 24 in stroke for strong linear travel
✅ 34.25 in retracted to 58.25 in extended length for versatile reach
✅ 1/2 in NPT port fits standard hydraulic hoses and connections

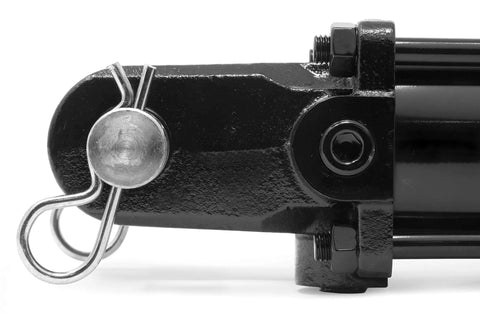

✅ 1 in zinc‑plated steel pin included for mounting readiness
✅ Chrome‑plated rod and reinforced O‑ring tube seal for durability

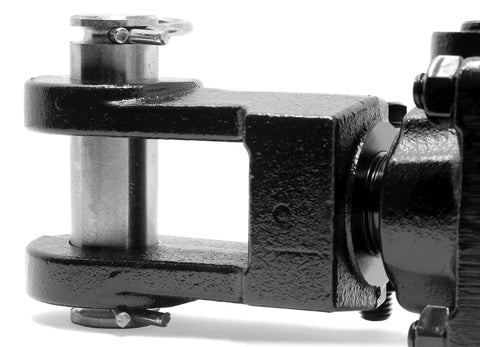

✅ ASTM A536 65‑45‑12 ductile iron piston with ductile iron clevises and grade 8 clamp nuts
✅ Tie‑rod steel‑welded construction for rugged reliability

💡 What is a tie‑rod hydraulic cylinder used for in industrial machinery and heavy equipment?

This handy component converts hydraulic pressure into linear force to perform lift, push, or pull tasks across many industries.

- Converts hydraulic energy into linear motion for lift, push, or pull - Handy in agriculture, construction, and manufacturing equipment - Uses standard 1/2 in NPT ports for hose connections
