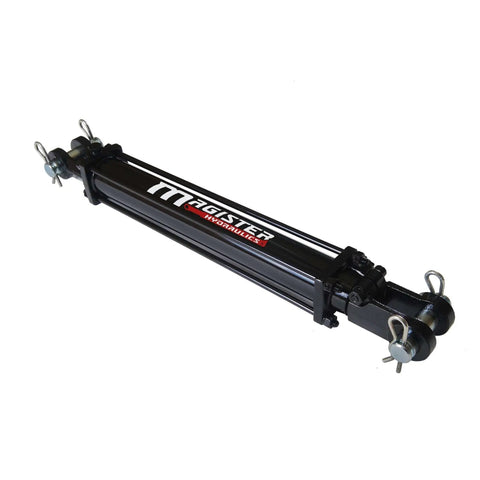

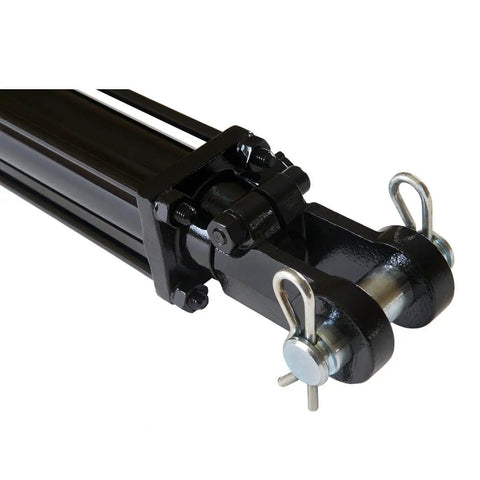

Workhorse Double Acting Tie Rod Hydraulic Cylinder For Agriculture, 2 Inch Bore 10 Inch Stroke, 2500 PSI, Welded Construction, Three Eighths Inch NPT Ports, Farm Grade AG Series Magister Hydraulics
UPC: 00193019853146

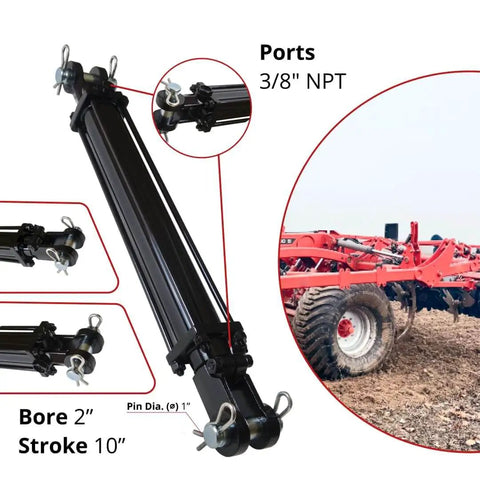

✔️ 2 in bore, 10 in stroke, 3/8 in NPT ports, single unit

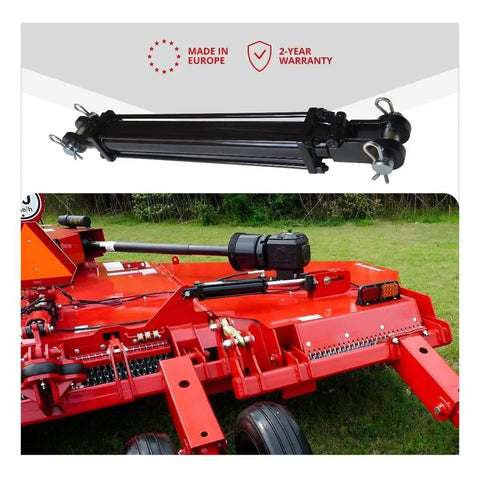

This farm-grade double-acting tie-rod hydraulic cylinder is designed for rugged agricultural equipment like tractors, planters, and implements. Built with welded construction for durability, it accepts standard 3/8" NPT ports and is ready to bolt into farm machinery that requires dependable linear actuation.
✅ 2 in bore (50.8 mm), outer diameter 2.38 in (60.45 mm)

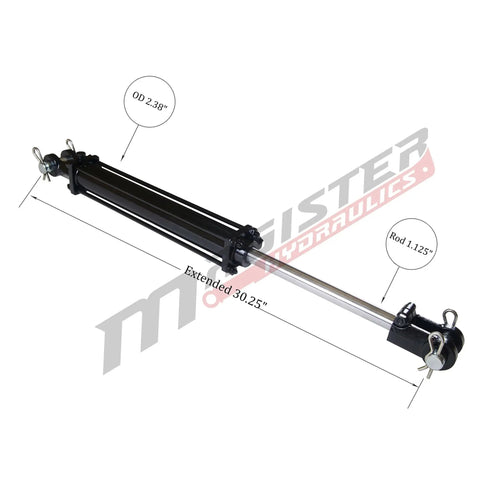

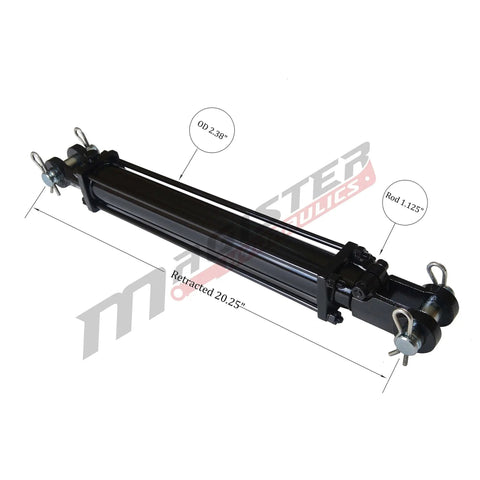

✅ 10 in stroke; retracted 20.25 in (514.35 mm), extended 30.25 in (767.55 mm)
✅ Rod diameter 1.125 in (28.58 mm); robust tie-rod construction
✅ Ports 3/8 in NPT (Female) for easy plumbing
✅ Pressure rating 2500 PSI; column load up to 7,850 lb

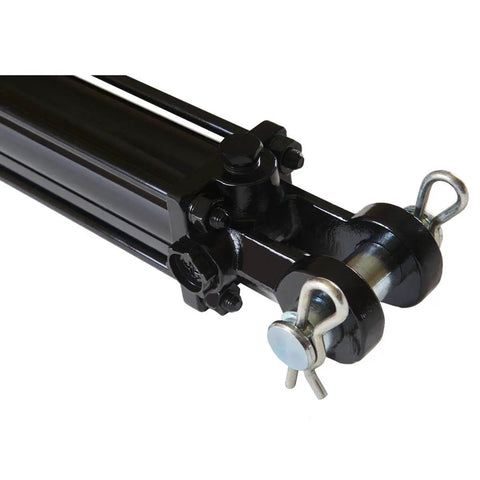

✅ Clevis ends with 1 in pin holes; farm-grade design
✅ Reversible ends and mounting options for flexible setup
✅ Pack: 1 unit; replacement for farming equipment

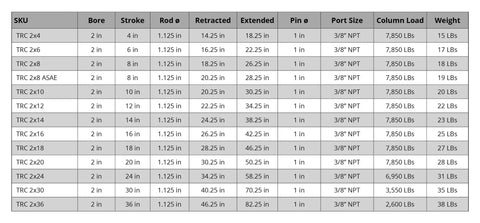

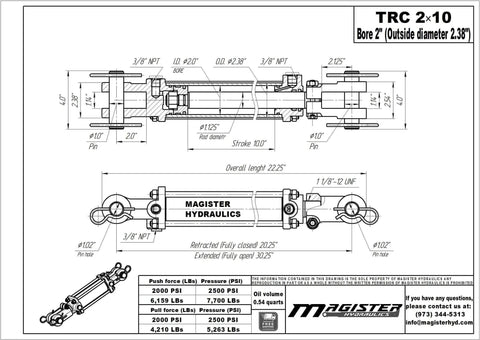

| Dimension | Size (in) / Size (mm) |
|---|---|
| Bore | 2.00 in / 50.8 mm |
| Outer Diameter | 2.38 in / 60.45 mm |
| Stroke | 10.00 in / 254.0 mm |
| Rod Diameter | 1.125 in / 28.58 mm |
| Retracted Length | 20.25 in / 514.35 mm |
| Extended Length | 30.25 in / 768.55 mm |
| Port Size | 3/8 in NPT (Female) |
| Pin Hole Size | 1 in |
| Max Operating Pressure | 2500 PSI |
| Mounting | Clevis ends |
💡 What is a hydraulic cylinder used for in farm machinery and how does a tie-rod design boost performance? In farming gear, hydraulic cylinders power lifting, tilting, and actuation. - handy for lifting heavy implements and adjusting equipment on tractors - provides strong, controllable push and pull forces in outdoor conditions - compatible with standard 3/8 in NPT ports and 1 in pin holes for quick mounting - welded tie-rod construction boosts durability and reliability in harsh environments
