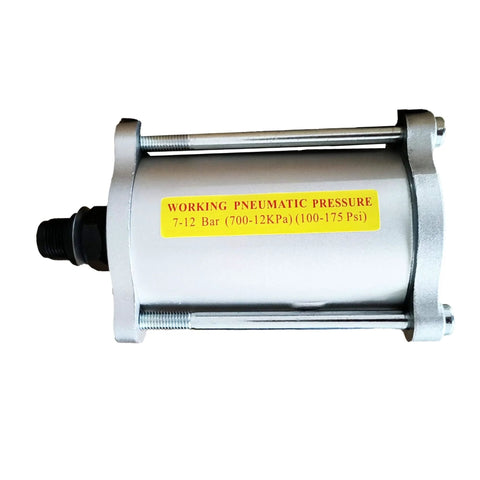

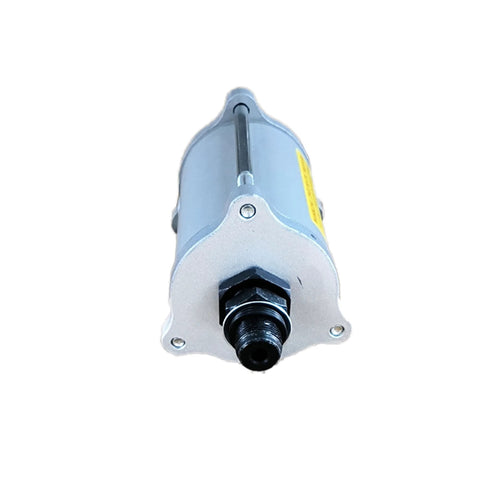

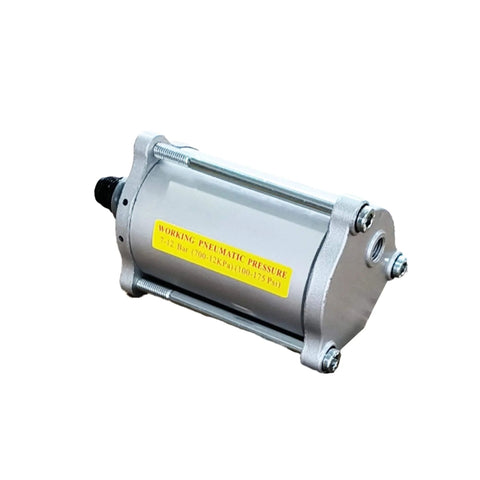

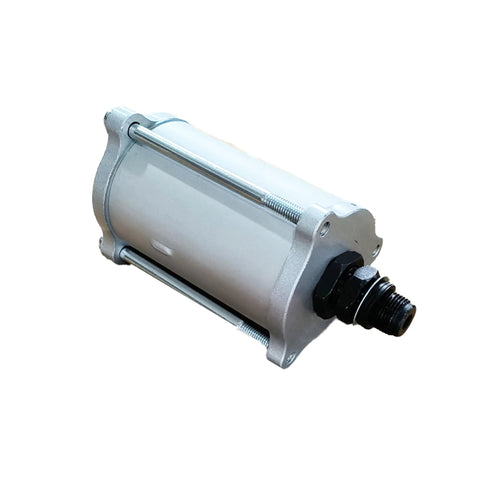

Compressed Air Motor for Pneumatic Hydraulic Pumps, housing with Stud

Compact Air Motor for Pneumatic Hydraulic Pumps with Stud Housing (Single Unit)
✔️ 0.7-1.0 MPa working; 70 MPa max; 11 SCFM; 850 ml/min no-load

This air motor powers pneumatic hydraulic pumps with a sturdy stud-mounted housing, ideal for single-acting ram work in industrial and construction settings. Its foot-actuated design lets you control hydraulic force precisely while keeping your hands free for other tasks.

✅ Air pressure 108-120 PSI provides steady hydraulic drive
✅ Max hydraulic pressure 70 MPa supports high-load operations
✅ No-load output flow 850 ml/min; under load 170 ml/min
✅ Input port 1/4 in NPT; output port M20X1.5 for easy connections
✅ Foot-actuated treadle design keeps hands free during use
✅ Dimensions: 75x75x185 mm (2.95x2.95x7.28 in); bore 70 mm
✅ Suitable for single-acting rams in industrial/construction work

💡 What is an air motor for pneumatic hydraulic pumps used for in industrial tooling?

The handy device converts compressed air into hydraulic power for precise ram movement.

- handy for hydraulic presses and ram actuation - easy to use with a foot pedal for hands-free operation - works with standard 1/4 in NPT air lines and M20x1.5 fittings
