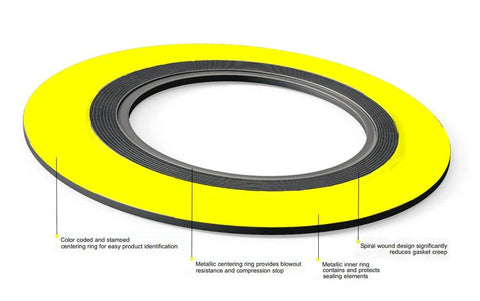

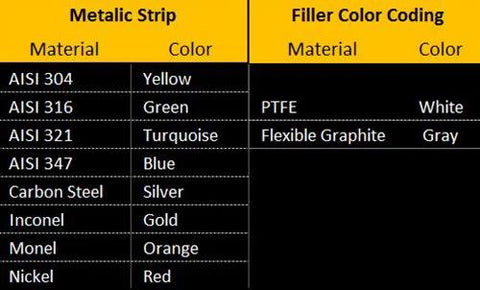

Yellow Band With Gray Stripe Spiral Wound Gasket For 18 Inch Pipe Size On ASME B16 5 Class 300 Flanges 304 Stainless Steel Windings With Flexible Graphite Filler High Temperature And Thermal Cycling Resistant For Pressure Variations By Sur Seal Teadit

High-Temp Spiral Wound Gasket for a single 18 inch flange
✔️ 18" pipe size, 304SS windings, flexible graphite filler, class 300

Spiral wound gaskets seal flange joints in high-pressure piping, typically used on ASME B16.5 Class 300 flanges for process plants, chemical plants, and power facilities. This gasket combines 304 stainless steel windings with a flexible graphite filler for reliable performance across temperature swings.

✅ 18 inch pipe size compatible with ASME B16.5 Class 300 flanges
✅ 304 stainless steel windings with flexible graphite filler
✅ Temperature range -150 to 842 °F (-100 to 450 °C) for high-temp service
✅ Centering ring for accurate alignment and compression limiter
✅ Durable, easy to install and remove for field service

💡 What is a common use case for a gasket in piping systems? This handy seal keeps leaks down under pressure and heat.

- Handy for sealing flange joints in industrial piping - Absorbs thermal expansion and contraction without leaks - Works with graphite filler and stainless windings for Class 300 connections
