VXB

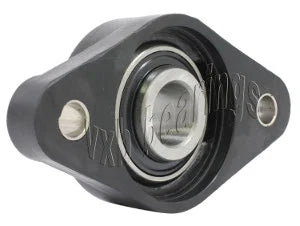

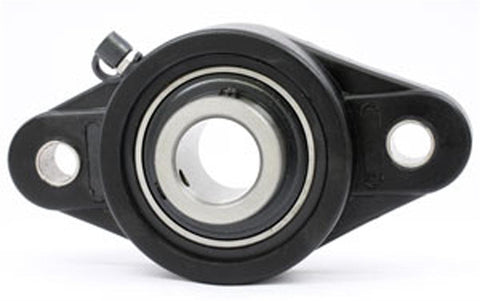

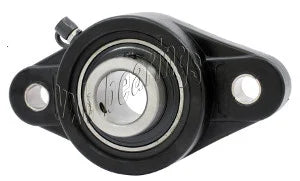

UCNFL201-8 1/2" 轴承带法兰外壳 2螺栓安装轴承
$51.38 CAD
$69.36 CAD您节省了 $17.98 CAD
SKU: Kit17737
UPC: 00193019073575
UPC: 00193019073575
Item: UCNFL201-8 Bearing
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1/2
Bolt Size: 3/8" inch
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1/2
Bolt Size: 3/8" inch
| UCNFL201-8 热塑性法兰铸造外壳 2 螺栓安装轴承 1/2" 内径 |
UCNFL201-8 热塑性法兰铸造外壳 2 螺栓安装轴承，内径是 1/2"。
|

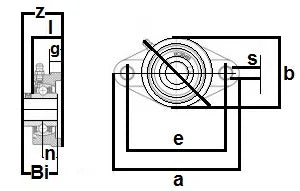

| 尺寸 (毫米) | ||||||||
|---|---|---|---|---|---|---|---|---|
| a | e | b | g | l | S | z | Bi | n |
| 4-31/64" | 3-35/64" | 2-35/64" | 31/64" | 1-3/64" | 11/32" | 1-5/16" | 1-7/32" | 1/2" |
