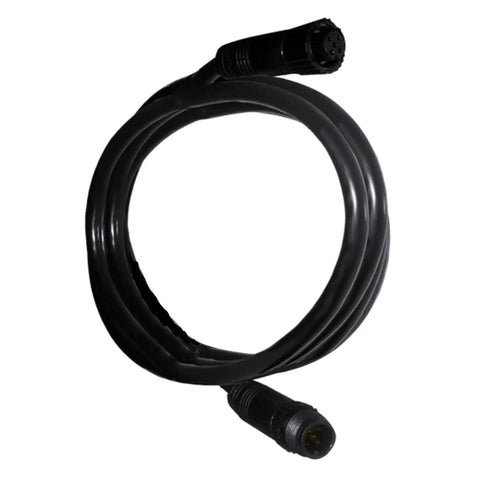

NMEA 2000 15 Foot Backbone Drop And Extension Cable coiled with gold-plated 5-pin ends for marine networks and Garmin compatibility.

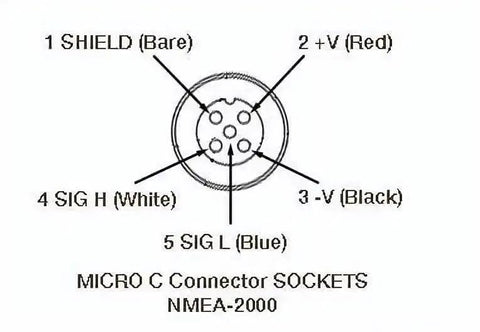

Diagram of NMEA 2000 Micro C connector sockets with labeled 5-pin configuration for marine networks.

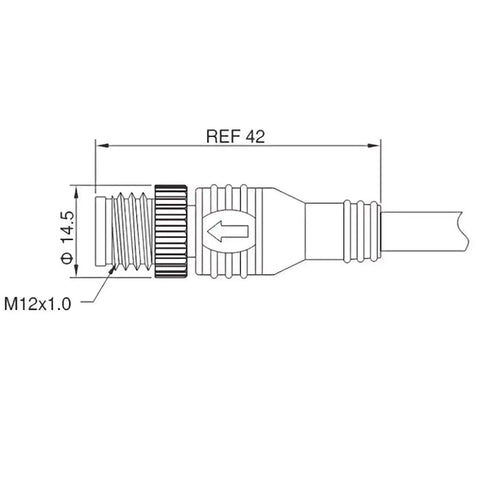

Technical diagram of NMEA 2000 15 Foot Backbone Drop And Extension Cable For Marine Networks with connector dimensions

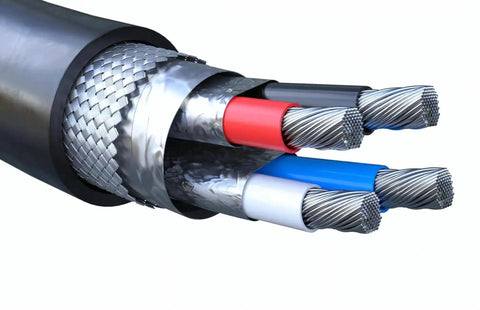

NMEA 2000 15 Foot Backbone Drop And Extension Cable showing internal shielded conductors with gold-plated connectors.
Close-up of NMEA 2000 15 Foot Backbone Drop And Extension Cable for Marine Networks, showing black, gold-plated 5-pin connector end.
Close-up of NMEA 2000 15 Foot Backbone Drop And Extension Cable For Marine Networks Universal Compatibility black connector
NMEA 2000 15 Foot Backbone Drop And Extension Cable showing gold-plated 5-pin connector for marine networks and sensors
Close-up of NMEA 2000 15 Foot Backbone Drop And Extension Cable gold-plated 5-pin connector for marine networks

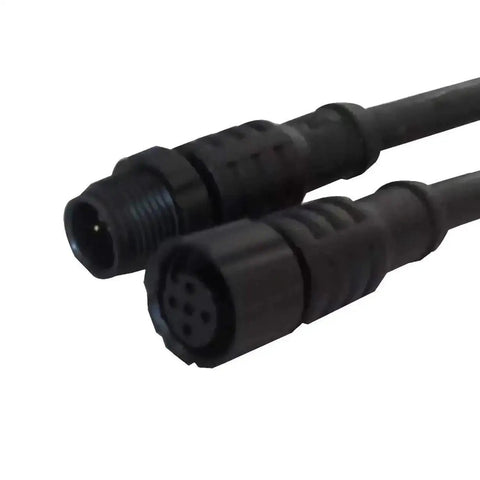

Close-up of NMEA 2000 15 Foot Backbone Drop And Extension Cable connectors for marine networks, compatible with Garmin Lowrance Simrad BG Navico.
Bearings Canada

NMEA 2000 15英尺主干线分支及延长电缆，适用于船用网络，兼容Garmin、Lowrance、Simrad、BG、Navico等品牌，适配传感器和显示器


$114.20 CAD $190.35 CAD您节省了 $76.15 CAD
SKU: VXB0CKGCJN15
UPC:






NMEA 2000 15英尺主干线电缆 - 单个单位
✔️ NMEA 2000 认证，屏蔽22/24 AWG，镀金5针端子

这款15英尺主干线/分支/延长电缆设计用于将传感器或显示器连接到NMEA 2000网络，或用于延长N2K主干线电缆。它配备镀金NMEA 2000连接器和屏蔽导线，最大限度减少干扰，并通过IP67防水测试，适合海洋环境使用。

✅ 15英尺长度，适用于NMEA 2000网络的主干线/分支/延长
✅ 屏蔽22AWG/2芯和24AWG/2芯电缆，减少干扰
✅ NMEA 2000 5针连接器，镀金触点防腐蚀
✅ IP67防水测试，支持最长24小时1米水下浸泡
✅ 100%通用兼容Garmin、Lowrance、Simrad、BG Navico等品牌

💡 NMEA 2000主干线电缆在船舶网络中的作用是什么？ NMEA 2000主干线电缆作为海洋网络中连接传感器和显示器的主数据通道，简化了安装和维护。 - 方便扩展网络和添加设备 - 保持布线整洁并在恶劣海洋环境中受保护 - 兼容多种品牌和传感器
